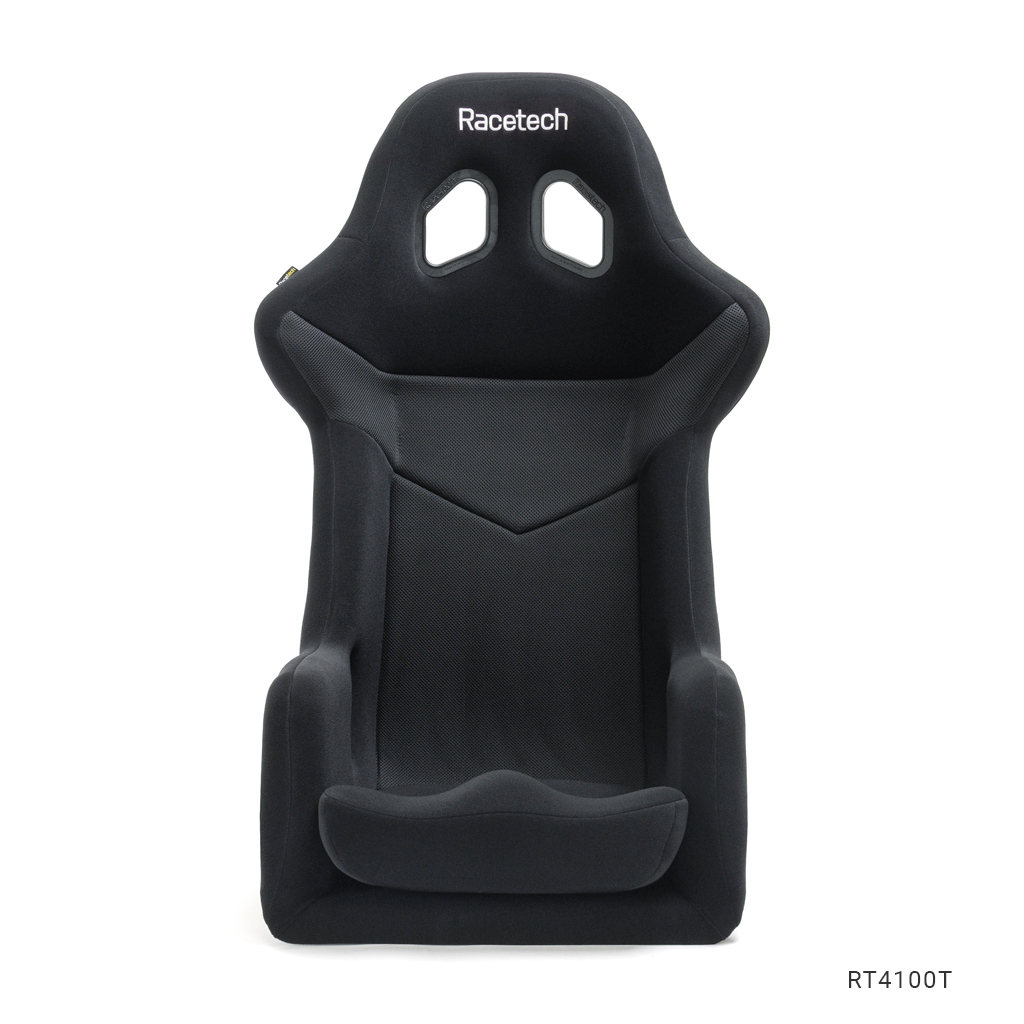

RT4100 Racing Seat

  • $1,369.99 USD

Available Options


Back Mount Instruction Download

The RT4100 is a standard-sized fiberglass race seat. We have focused on achieving a lightweight seat shell with optimized geometry, straddling that line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. Our patented back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the rollcage at shoulder level. Large harness guides and a removable molded base cushion allow a range of drivers of varying heights to fit. Breathable Spacer fabric, parallel sides and pronounced thigh support round off the features of this accomplished motorsport seat. For the larger driver, the RT4100WT is approximately 2.25" taller and 1.5" wider and for those wanting a seat with head restraints, our RT4100HR and RT4100WTHR complete the 4100 Series. The 4100 Series seats use Racetech RTB1009M aluminum or RTB2009S steel side mounting brackets.

Ideal for an entry-level club racer, track day car, or street/strip drag car. Contact us directly to help with your application and setup.

Dimensions and Weights:

[[SEAT-TABLE]]

Images may differ from the actual product; embroidery on the product received may differ to that shown. Contact us if you have any questions.

Application
Common Applications From clubsport to national-level circuit and rally
Stock Color / Material
Gel-coat Gloss black
Seat Cover Black fire-retardant nylon fabric with Spacer mesh through the torso
Wear Patches N/A
Technical
FIA Homologation 8855-1999 Approved
Shell Construction Fiberglass Composite
Shell Weight From 5.7kg (12.6lbs)
Side Mount Hole Centres 295mm
Back Mount Hole Centres 250mm
Bolt Torque (Zinc) 30Nm / 22 ft lb
Sizes Standard
T - Tall
WT - Wide & Tall
Design
Head Restraint N/A
HANS Compatible Yes
Harness Compatibility Up to 6-point harness
Large Harness Guides Yes
Air Ducting N/A
Back-mount Compatible Yes
Back-mount Required for FIA Homologation No
