RT4100HR Racing Seat

  • $1,469.99 USD

Available Options


Back Mount Instruction 119 and 4100 series REV02-2022-USA.pdf Download

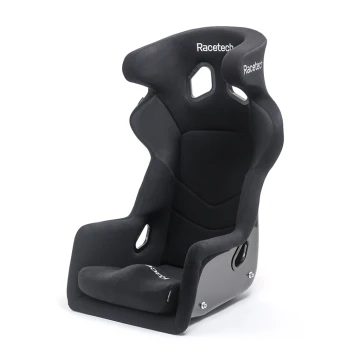

The RT4100HR is a standard-sized fiberglass race seat equipped with head restraint wings for enhanced safety. We have focused on achieving a lightweight seat shell with optimized geometry. Our patented back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of bolting the back of the seat to the roll cage at shoulder level. Large harness guides and a removable molded base cushion allow a range of drivers of varying heights to fit. Breathable Spacer fabric, parallel sides, and pronounced thigh support round off the features of this accomplished motorsport seat. For the larger driver, the RT4100WTHR is 60mm taller and 40mm wider and for those wanting a seat without head restraints, our RT4100 and RT4100WT complete the 4100 Series. The 4100 Series seats use Racetech RTB1009M aluminum side mount brackets or the optional RTB2009S steel side mount brackets.

Perfect for that Drag Race Outlaw, No Prep Car or Door Slammer when you need to be safe and comfortable.


Dimensions and Weights:

[[SEAT-TABLE]]

Images may differ from the actual product; embroidery on the product received may differ to that shown. Contact us if you have any questions.

Application
Common Applications From clubsport to national-level circuit and rally
Stock Color / Material
Gel-coat Gloss black
Seat Cover Black fire-retardant nylon fabric with Spacer mesh through the torso
Wear Patches N/A
Technical
FIA Homologation 8855-1999
Shell Construction Fiberglass Composite
Shell Weight From 6.1kg (13.5lbs)
Side Mount Hole Centres 295mm
Back Mount Hole Centres 250mm
Sizes HR - Standard
THR - Tall
WTHR - Wide & Tall
Design
Head Restraint Integrated head restraint
HANS Compatible Yes
Harness Compatibility Up to 6-point harness
Large Harness Guides Yes
Air Ducting N/A
Back-mount Compatible Yes
Back-mount Required for FIA Homologation No
